3 System Design Patterns Every Engineer Should Know

If you're preparing for system design interviews or building production systems, understanding core design patterns is essential. These patterns solve recurring problems in distributed systems and help you make better architectural decisions. At Levelop, we break down complex engineering concepts into practical, actionable knowledge.

In this post, we'll explore three fundamental patterns that every software engineer should know: Layered Architecture, Pub/Sub Messaging, and CQRS.

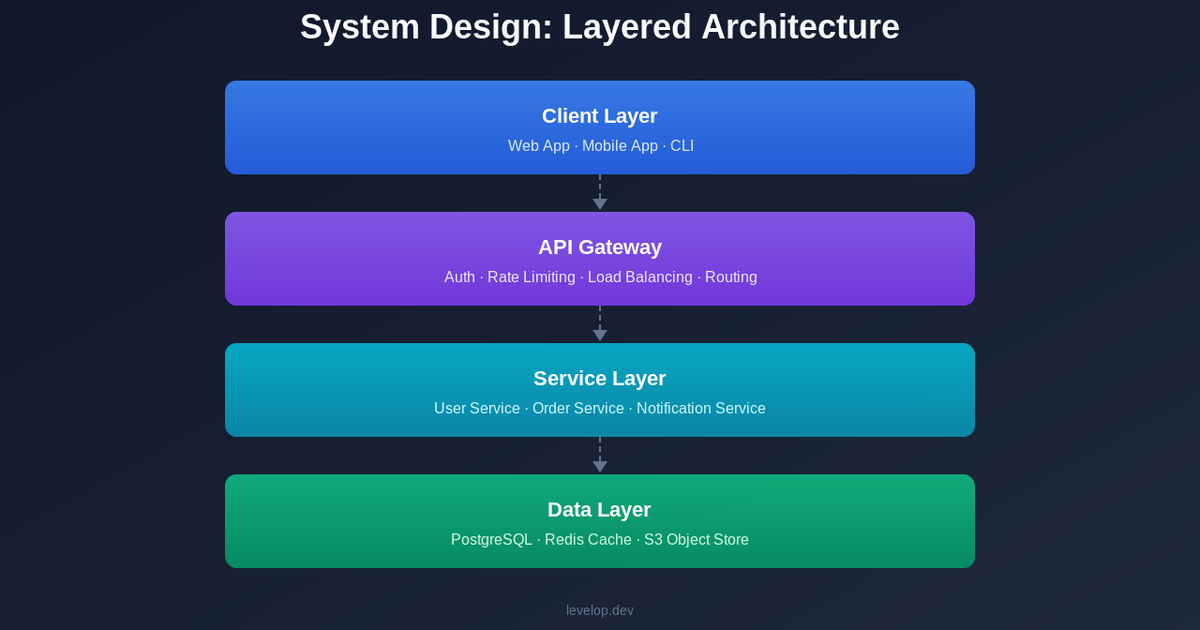

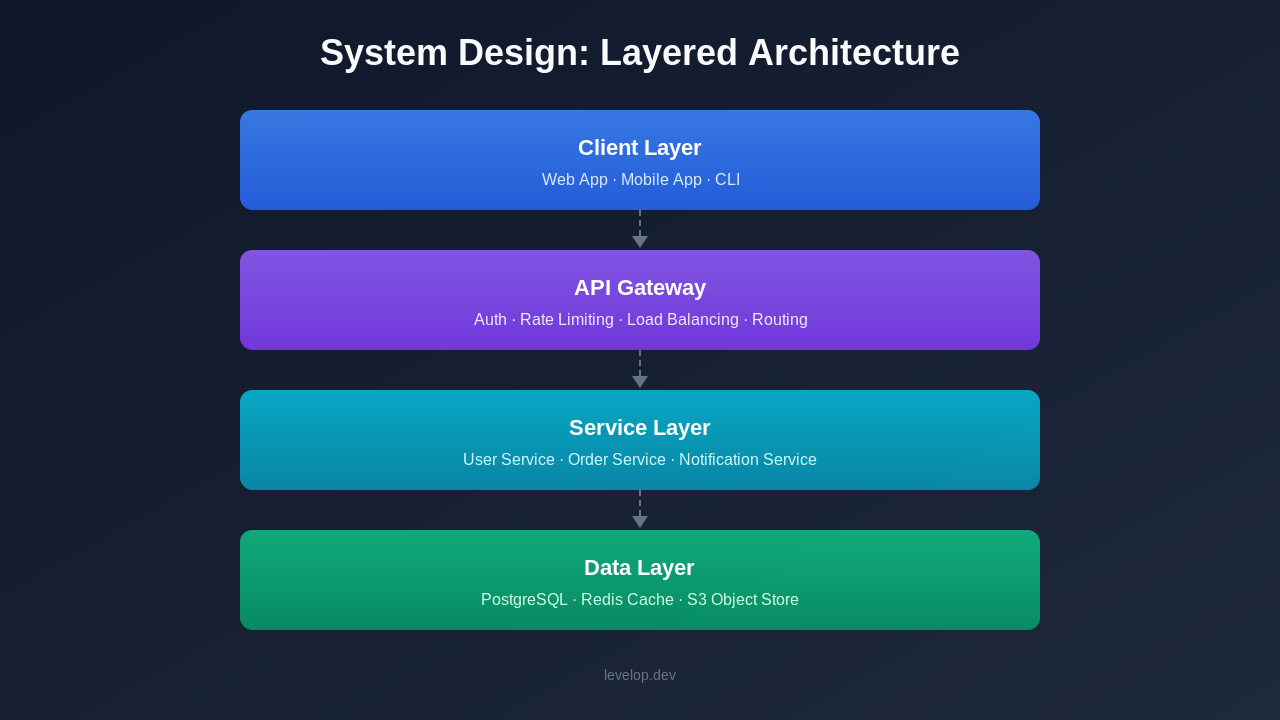

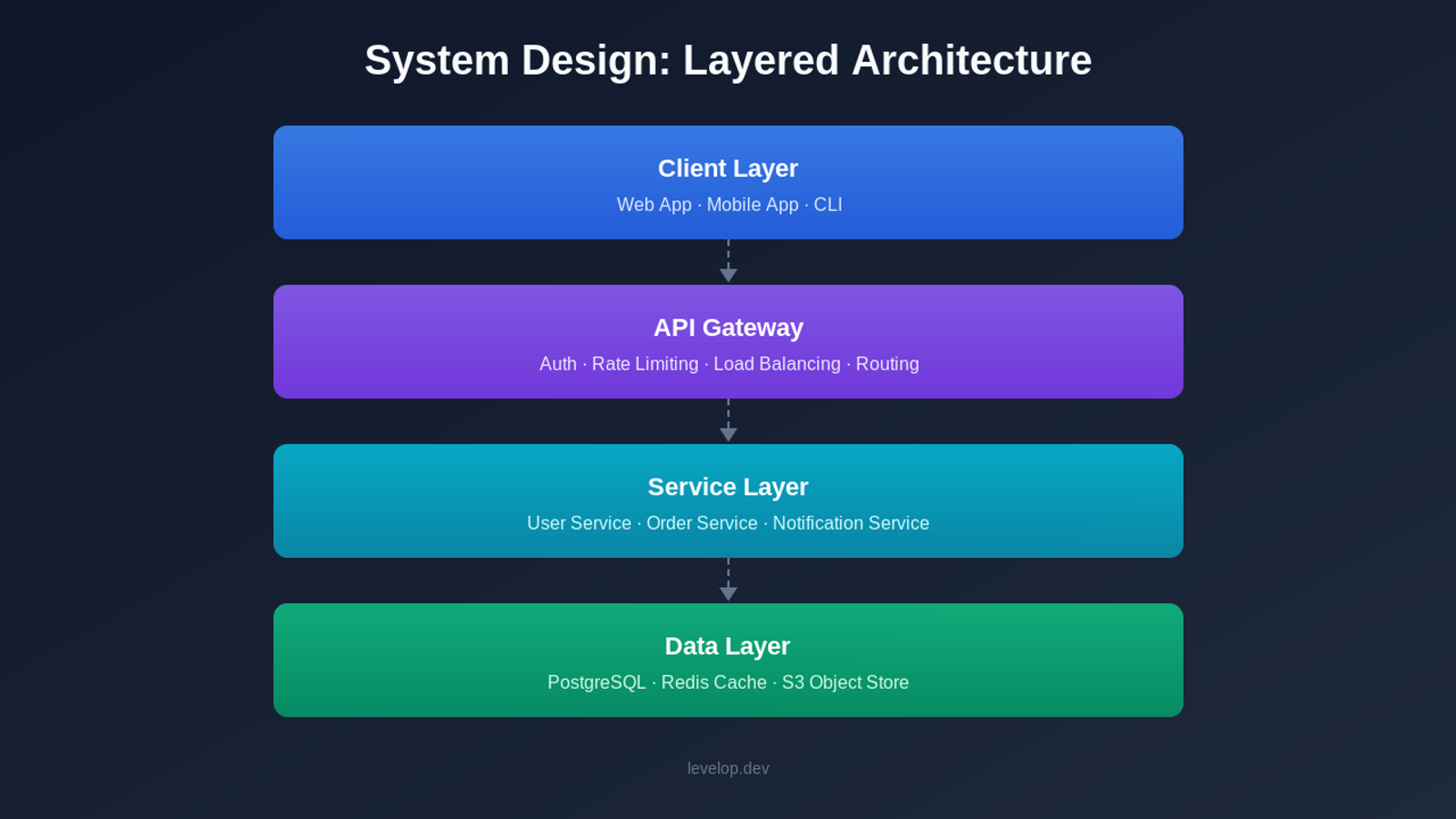

Layered Architecture

Layered architecture is the most common pattern for organizing backend systems. It separates concerns into distinct tiers, each with a clear responsibility.

Each layer only communicates with the layer directly below it. This creates a clean separation of concerns and makes the system easier to test and maintain.

How Layered Architecture Works

The typical layers are: Client (UI), API Gateway, Service (business logic), and Data (persistence). This is the same pattern used by frameworks like Spring Boot, NestJS, and Django.

// Express.js layered structure
const app = express();

// Route -> Controller -> Service -> Repository
app.get("/users/:id", userController.getById);

class UserService {
  constructor(private repo: UserRepository) {}
  async getById(id: string) {
    return this.repo.findById(id);
  }
}

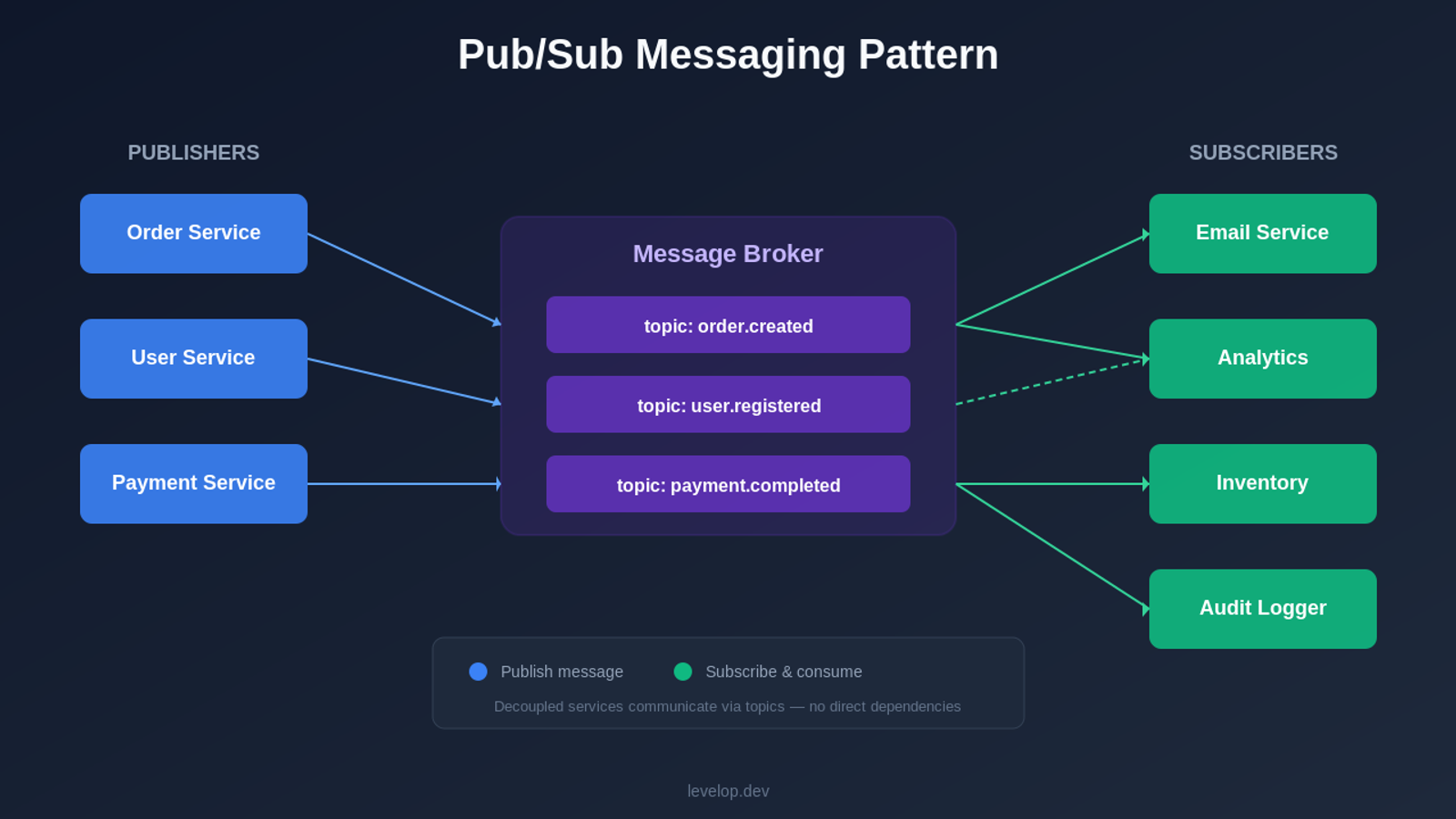

Pub/Sub Messaging Pattern

The Publish/Subscribe pattern decouples services by introducing a message broker between producers and consumers. Services communicate through topics rather than direct API calls.

Why Pub/Sub Matters for Microservices

In a microservices architecture, direct service-to-service calls create tight coupling. Pub/Sub solves this by routing messages through a broker like Apache Kafka, RabbitMQ, or AWS SNS/SQS.

// Publishing an event
await messageBroker.publish("order.created", {
  orderId: order.id,
  userId: order.userId,
  items: order.items,
  total: order.total,
  timestamp: new Date().toISOString()
});

// Subscribing to events
messageBroker.subscribe("order.created", async (event) => {
  await emailService.sendOrderConfirmation(event.userId, event.orderId);
  await analyticsService.trackPurchase(event);
});

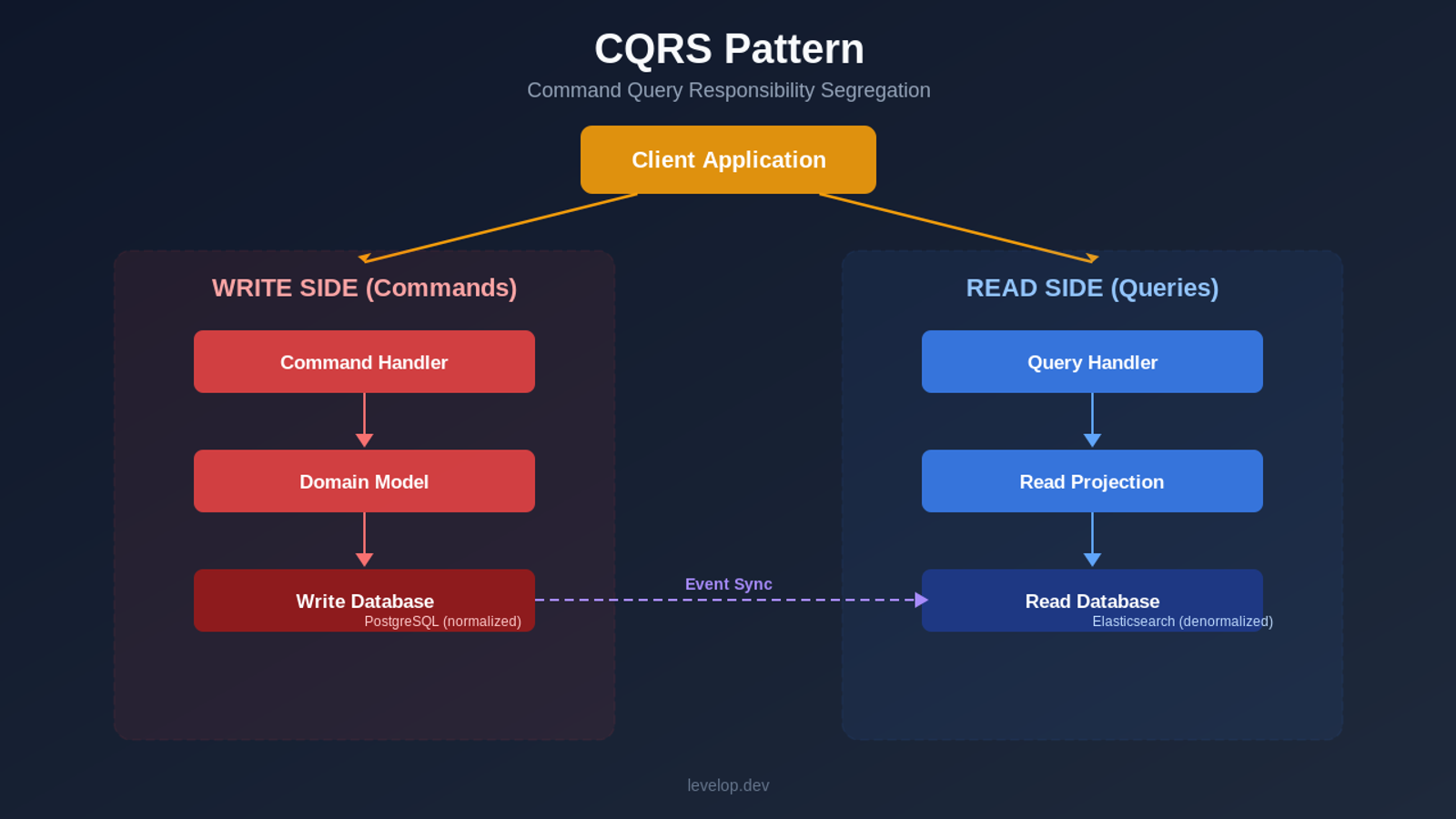

CQRS — Command Query Responsibility Segregation

CQRS separates read and write operations into different models. The write side handles commands through a domain model, while the read side uses optimized projections for queries.

When CQRS Makes Sense

This pattern shines when read and write workloads have very different scaling requirements. Your write database (PostgreSQL) can be normalized for consistency, while read replicas (Elasticsearch, Redis) are denormalized for fast queries. CQRS is often paired with Event Sourcing for a complete audit trail.

// Command side
class CreateOrderCommand {
  async execute(dto: CreateOrderDTO) {
    const order = Order.create(dto);
    await this.writeRepo.save(order);
    await this.eventBus.publish(new OrderCreatedEvent(order));
  }
}

// Query side
class OrderQueryHandler {
  async getOrderSummary(userId: string) {
    return this.readRepo.findByUserId(userId);
  }
}

When to Use Each Pattern

Choose Layered Architecture for straightforward CRUD applications. Use Pub/Sub when you need event-driven communication and loose coupling. Adopt CQRS when read and write operations have vastly different performance requirements.

In practice, production systems often combine these patterns. You might use layered architecture within each microservice, Pub/Sub for inter-service communication, and CQRS for your highest-traffic read paths.

Key Takeaways

Understanding these patterns gives you a vocabulary for discussing system design and a toolkit for solving distributed systems problems. Start simple, add complexity only when the data access pattern demands it. Stay tuned for more deep dives on the Levelop blog.
